Making a Perfect Front Strut Nose Seal Fit

Click on an image for a larger view

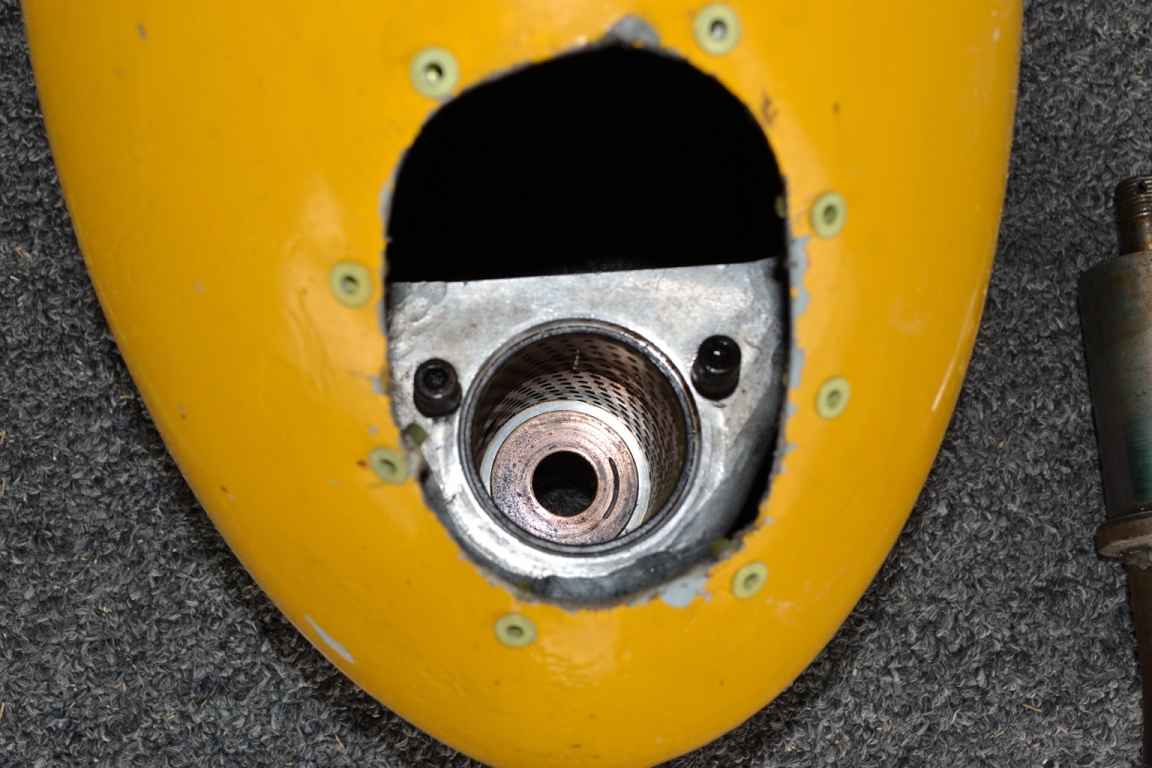

Front Fork installed in Front Fairing
Front Fork installed in Front Fairing 		nstalling the Custom Cutting tool
Installing the Custom Cutting tool

Tool Installed
Tool Installed

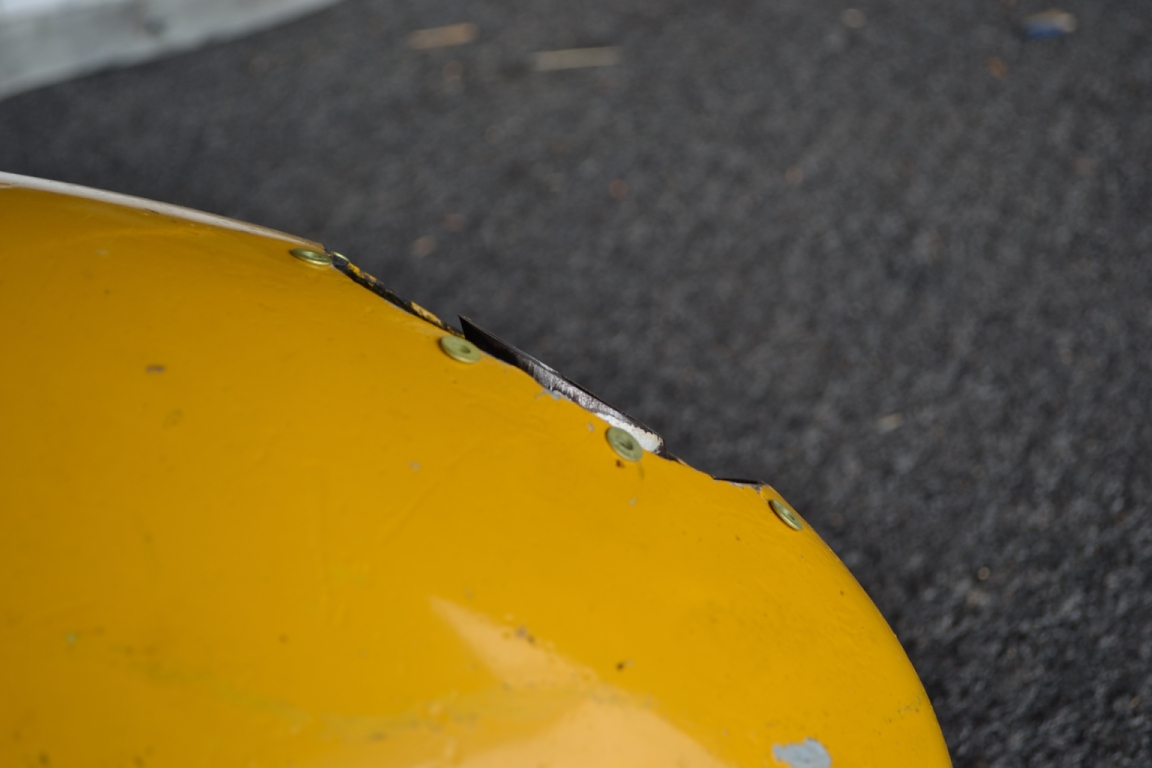

Cutting Edge Sitting Proud in the Fairing
Cutting Edge Sitting Proud

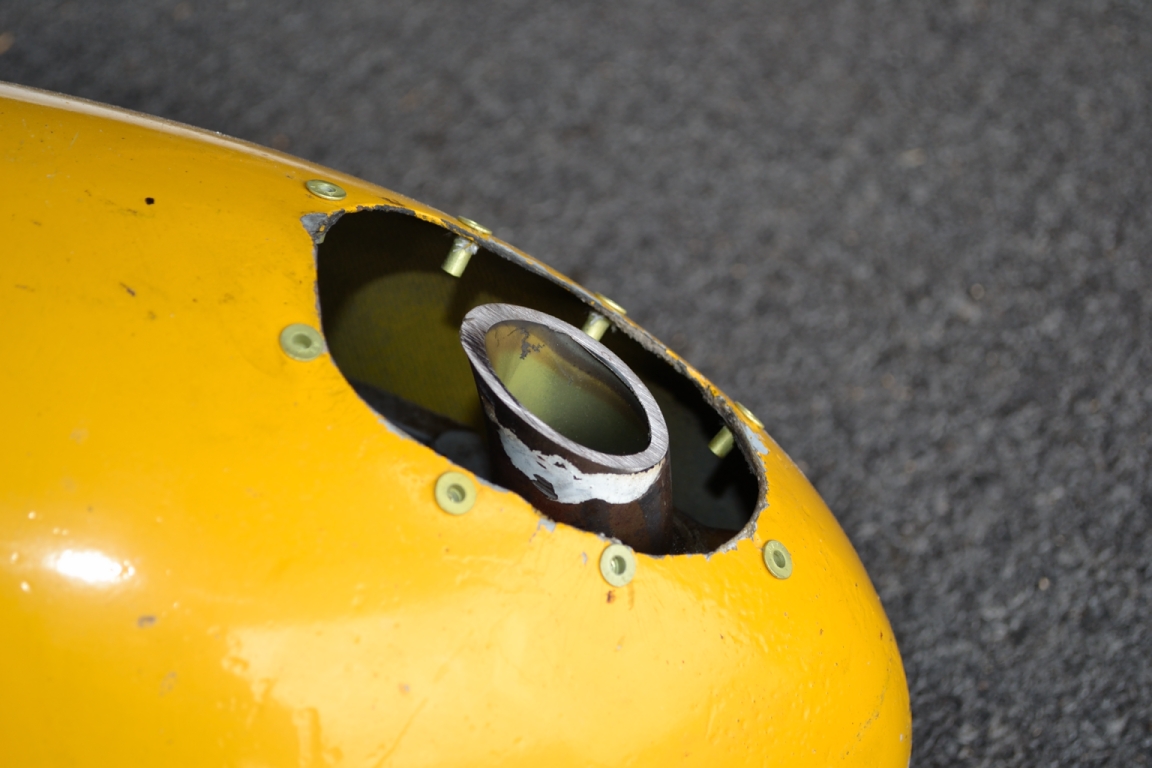

Another View
Another View

Install Nose Seal
Install Nose Seal

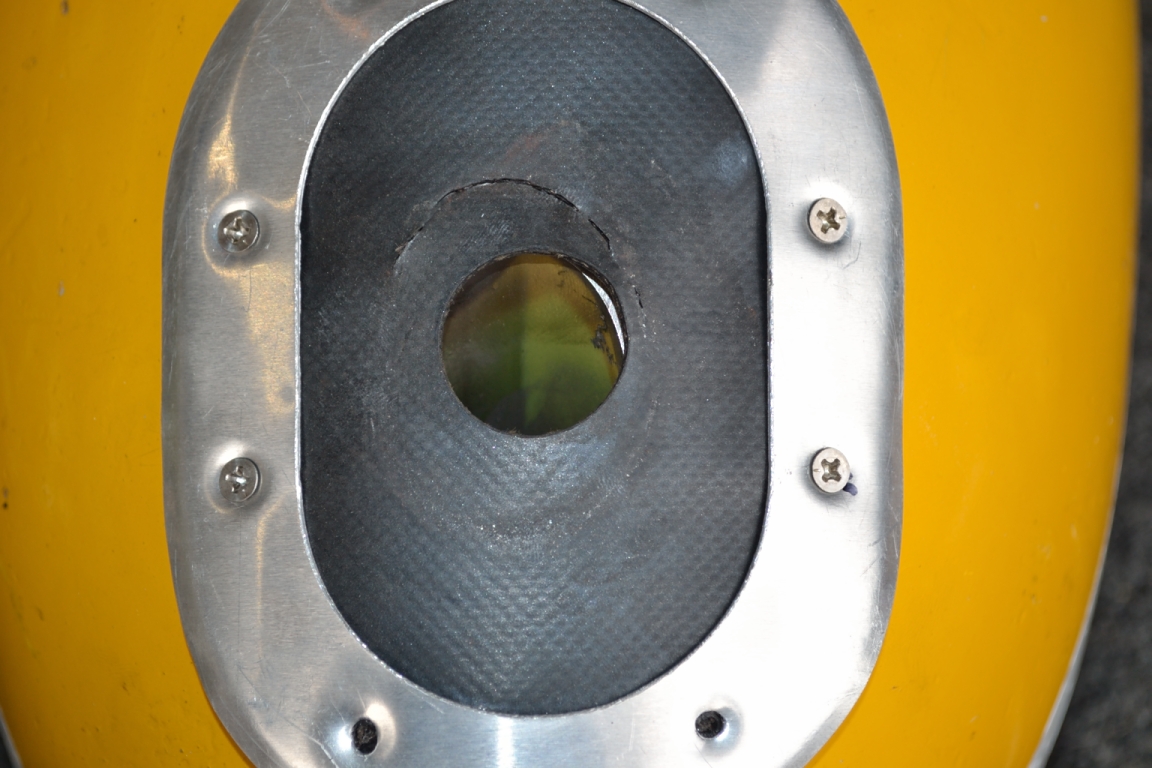

After Scoring Edge with Hammer
After Scoring Edge with Hammer

Now that you have scored the rubber seal with the hammer along the outer edge of the cutting tool, you are ready to remove the seal and cut along the score line (slightly inside) to make the custom seal.
