Inspecting the Condition of a Candidate Aircraft

Click on an image for a larger view

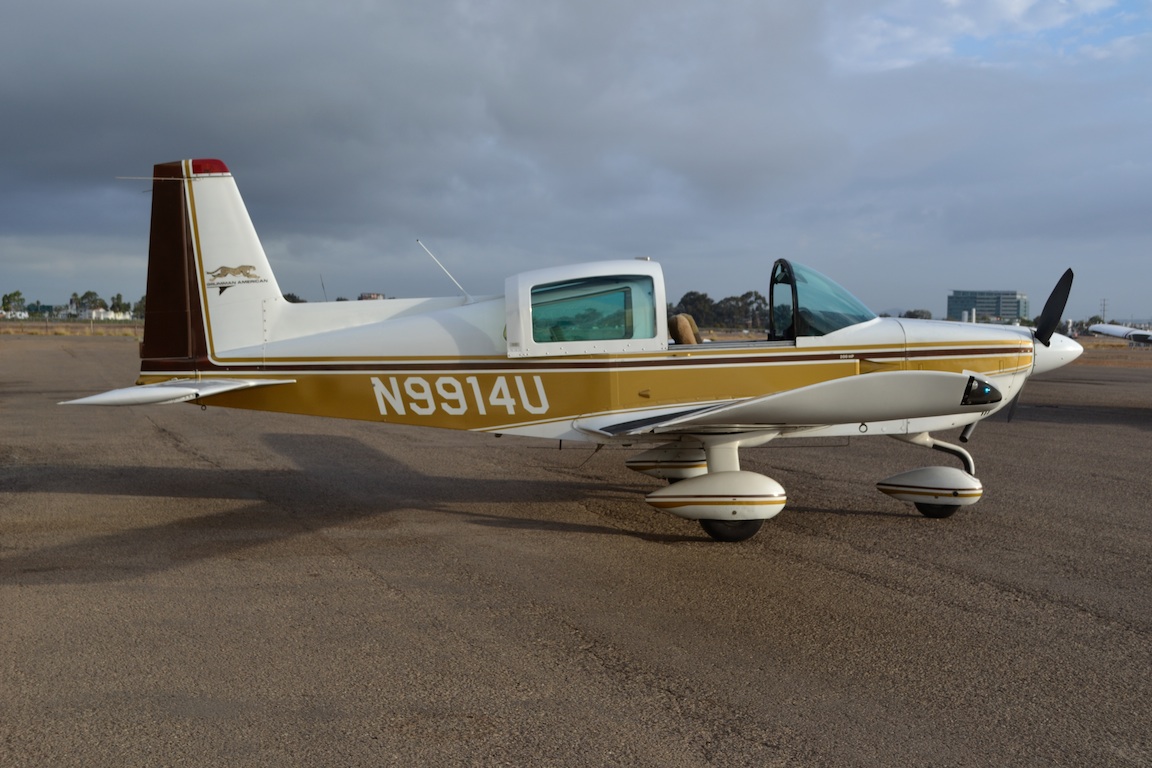

Candidate Aircraft for Purchase

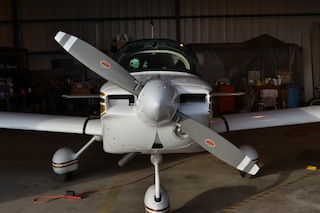

Pre-Buy Plane 		Constant speed propeller on a Grumman Cheetah
Something about the prop?

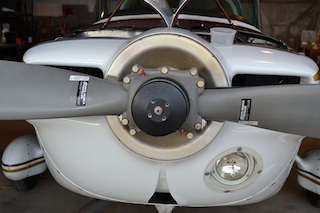

Constant Speed Hub on the Grumman Cheetah

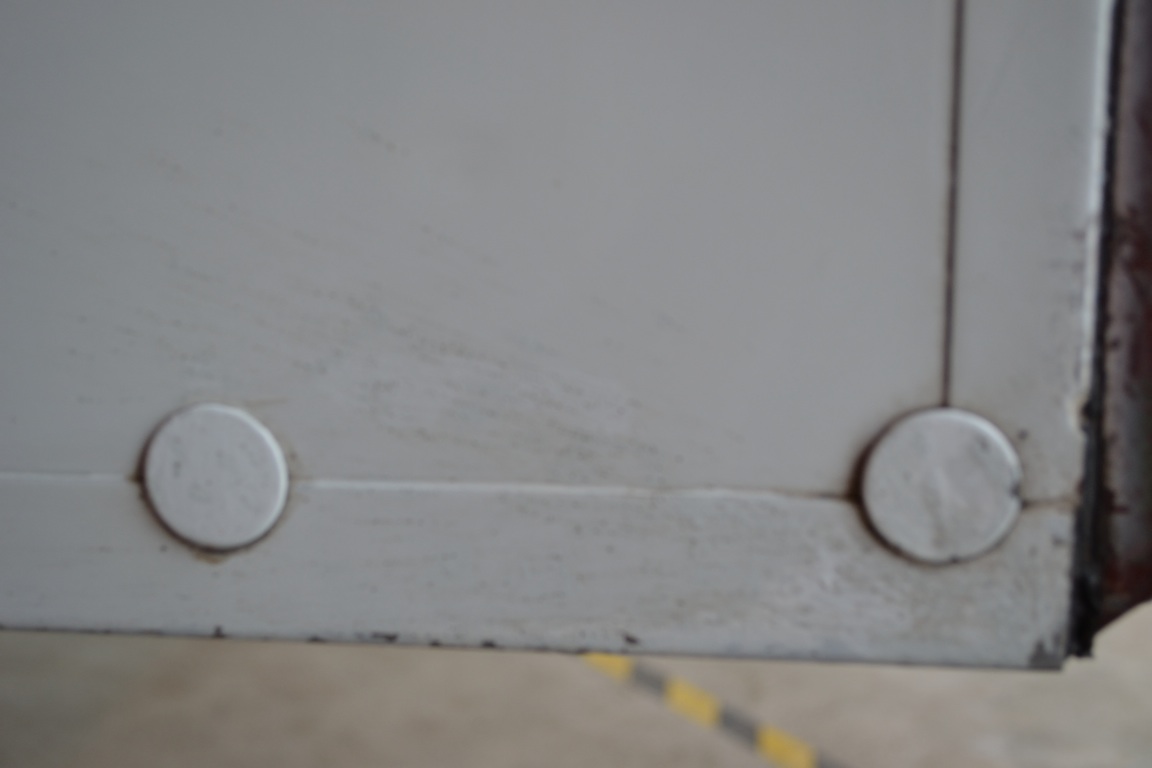

That is a hub 		Acid leak on side of fuselage
Acid Leaking

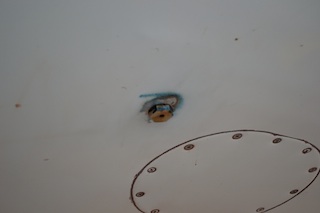

Quick drain leak

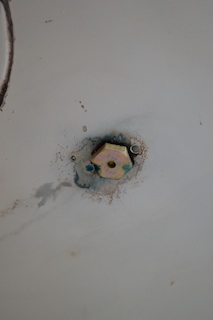

Quick drain leak 		Quick drain leak on other wing
Other one as well

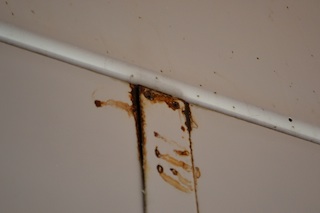

Outboard Tank Rib Leak
Tank Rib Leak 		Checking the Muffler area for leaks
Checking the Muffler Area

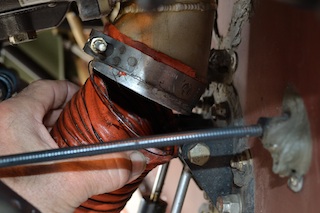

Broken Scat tubing

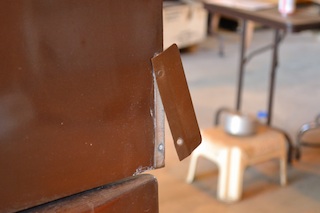

Broken Scat tubing 		Broken rivet on rudder trim
Rudder Trim Loose

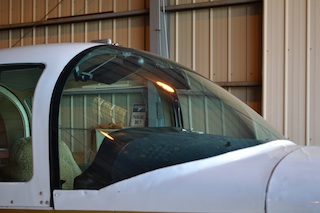

Checking all the glass in the plane

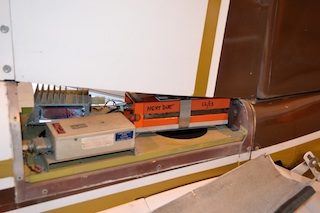

Glass Condition 		Checking the ELT and tailcone area
Checking the ELT

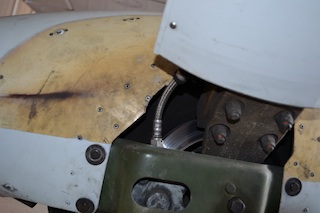

Main Gear with new brake hoses

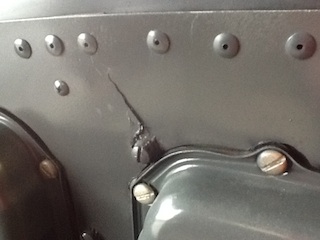

Main Gear 		Baffling crack caused by pillowhead bolt with no AN970-3 cut washer under it
A Baffling Crack!
This pre-buy aircraft had just come out of a $3,000
plus annual with these issues on the airframe. The
spar had been upgraded to a Tiger spar, and the 200HP
engine installed under an STC.

This plane now lives in Tuscon, AZ.
